Geotech Portable Bladder Pumps and Controllers


Product Image of Geotech Portable Bladder Pumps and Controllers

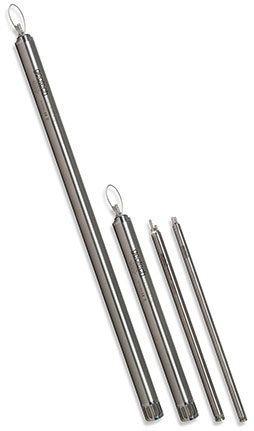

Geotech’s portable bladder pumps are designed with input from field technicians who actually do the sampling!

Single turn release head and quick change bladders allow for quick, in-the-field bladder changes and easy decontamination. Custom hose barbs allow the pump to be secured to tubing without the need for tubing clamps.

  • New 36" Pump
    Provides up to 30% greater flow
  • Constructed of 316 stainless steel
    For unsurpassed durability and truly representative samples
  • Portable turnkey systems available
    Everything you need to quickly and efficiently sample your site
  • Easy-to-open housings
    No special tools or training required to service the pump
  • Quick-change bladder configuration
    Bladders are easily changed without tools by sliding back the PTFE collars
  • Drop tube intake option
    Allows for deeper sampling
  • Extra bladders are readily available
    Available in PTFE and Polyethylene for all models
  • Bonded tubing
    In Polyethylene and FEP lined Polyethylene by the foot or by the roll
  • Compatible with the Geotech Geocontrol PRO & BP Controller units
  • CE rated for quality
  • Available in these diameter sizes:
    .675" (1.7cm)
    .85" (2.2cm)
    1.66" (4.2cm)

Dependent on your needs, pumps are quoted with the controller as part of a full sampling system.

The simple-to-use Bladder Pump (BP) Controller (300 or 500 PSI) utilizes accurate microprocessor-controlled fill/discharge timers to sustain true low-flow sampling techniques. Both Controllers are equipped with high-pressure valves and fine resolution regulators that can perform in deep-well applications.

The Geotech BP Controller universally connects to any bladder pump system using simple quick-connect adapters.

  • Designed for durable, trouble-free operation
  • High pressure operation for greater depths
  • Multiple power input options
  • Microprocessor controlled timers for accuracy
  • Internal over-pressure protection
  • Battery over-draw protection
  • Water Level Meter compatibility for well draw-down
  • Intuitive user controls and status indicator
  • Accessories cavity for easy portability
  • Included: Air-In and Air-Out Hoses, AC Power Supply, DC Power Cord and Clip Adapter, Geotech Drawstring Bag, Carry Case
